SD51-915

Description

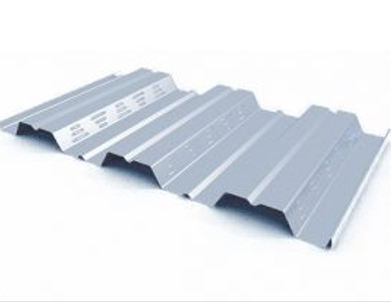

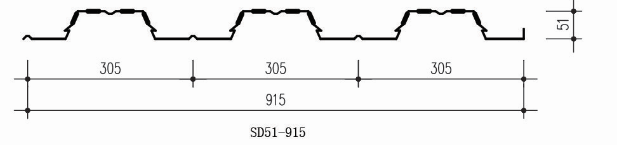

SD51-915 is 2-inch deep composite deck designed for shorter span floor deck conditions. The standard profile contains 3 ribs and is 36 inches wide with opposing male and female edges, creating an interlocking side lap when installed. The mechanical embossments on the surface of the deck are proprietary to Solideck. and were strategically designed to increase the shear bond strength between the concrete and steel. SD51-915 can be used as a composite deck or simply as a form deck.

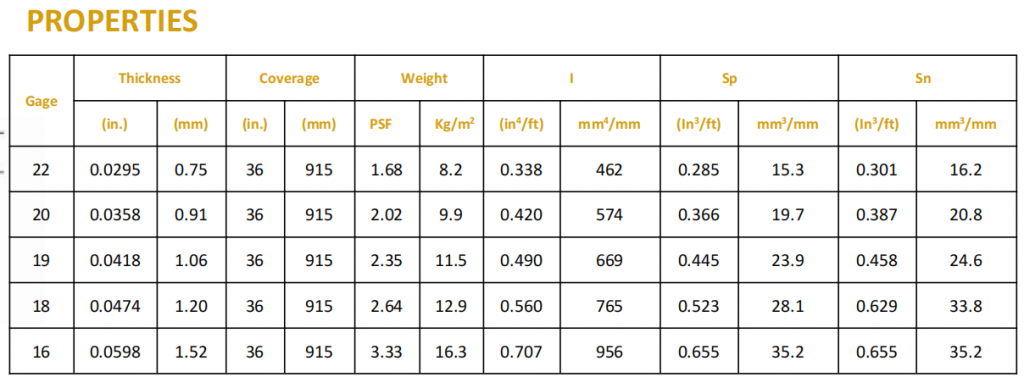

We can provide raw materials with thickness of 22, 20,19, 18, and 16 gauge, and galvanized sheet of 120g/m²~275g/m².
