SD53-600

Description

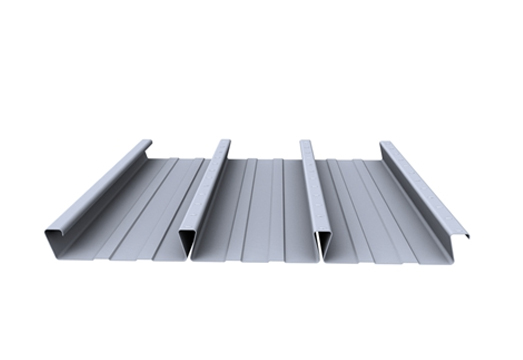

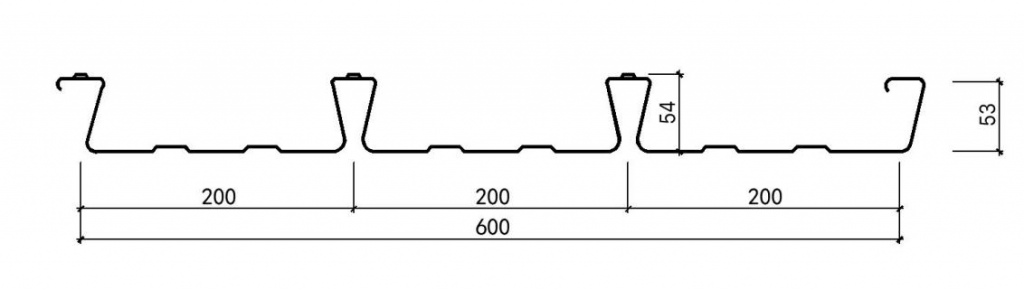

SD53-600 is a dovetail rib steel decking profile capable of maximizing the deck bond to concrete, delivering best in class load capacity and spanning widths of up to 3.0m unsupported.The standard profile contains 3 ribs and is 600mm wide with opposing male and female edges, creating an interlocking side lap when installed.

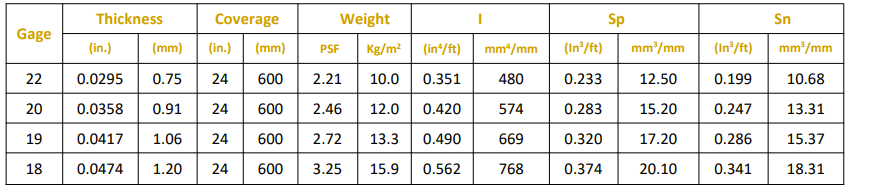

SD53-600 is the result of a number of design improvements by Solideck including the introduction of a higher grade steel for the metal decking deck. We can provide raw materials with thickness of 22, 20, 19, and 18 gauge, and galvanized sheet of 120g/m²~275g/m².
