SD65-555

Description

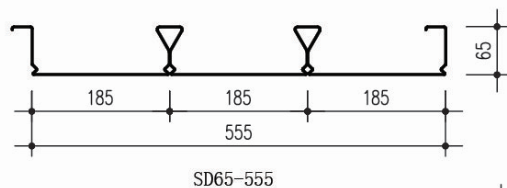

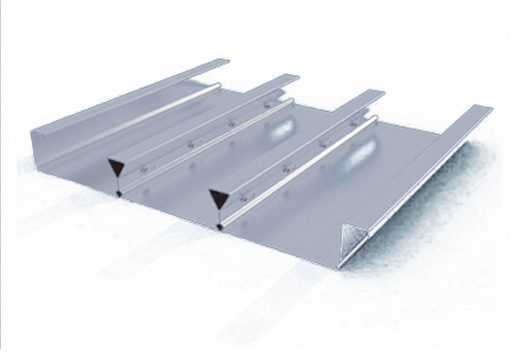

SD65-555 is the most popular closed plate type in China,and has a large later bearing capacity,delivering best in class load capacity and spanning widths of up to 3.3m unsupported. the bottom surface is flat, the effect is beautiful, and various colors of paint can be painted on the steel plate.The standard profile contains 3 ribs and is 555mm wide with opposing male and female edges, creating an interlocking side lap when installed.It has excellent fire resistance and can reach 2 hours of fire resistance.SD65-555 can be used as a composite deck.

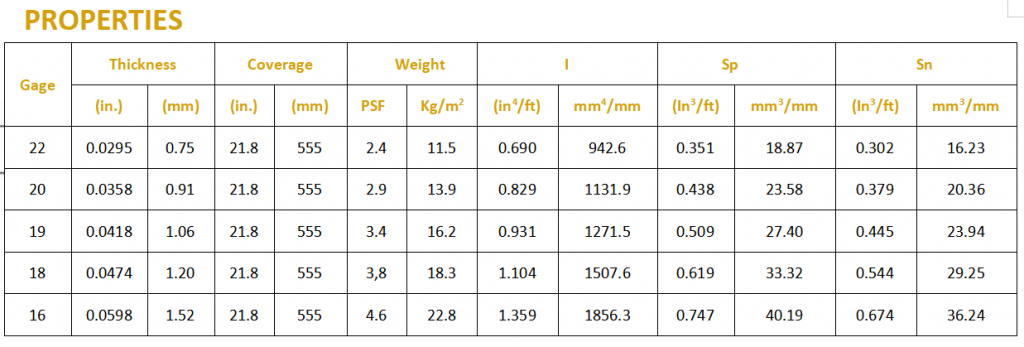

We can provide raw materials with thickness of 22, 20,19, 18, and 16 gauge, and galvanized sheet of 120g/m²~275g/m²
